Whole Plant Process Flow & Equipment 3D Disassembly Training System

Whole Plant Process Flow & Equipment 3D Disassembly Training System 3D disassembly training system

Three-dimensional disassembly training system for the entire factory's process flow and equipment

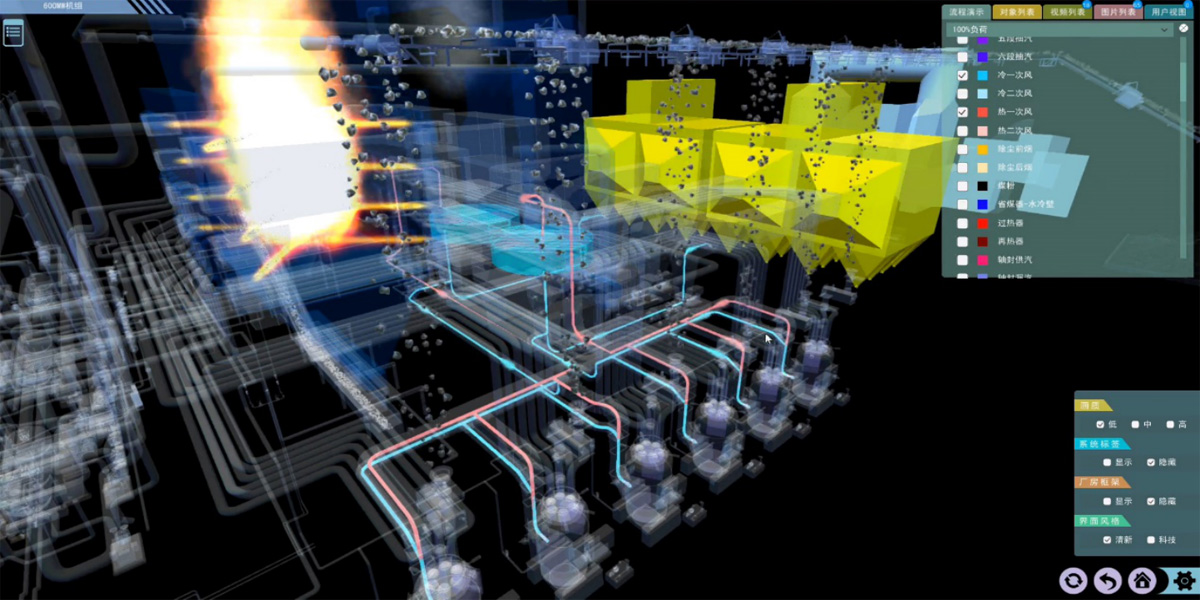

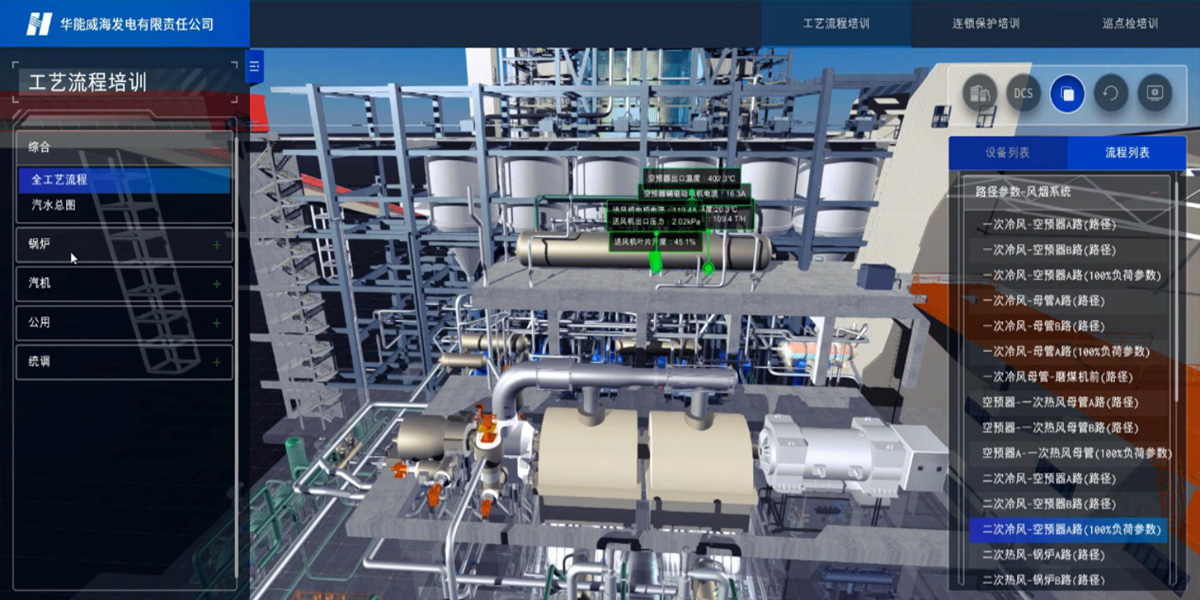

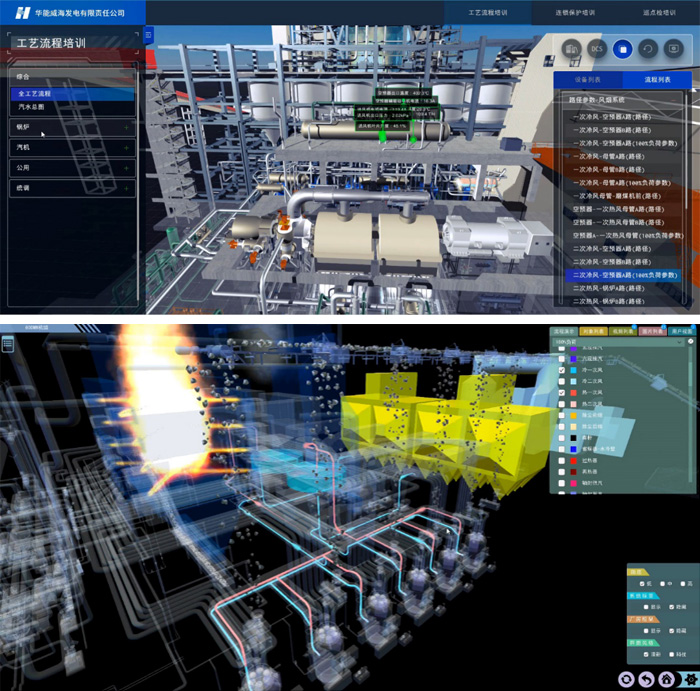

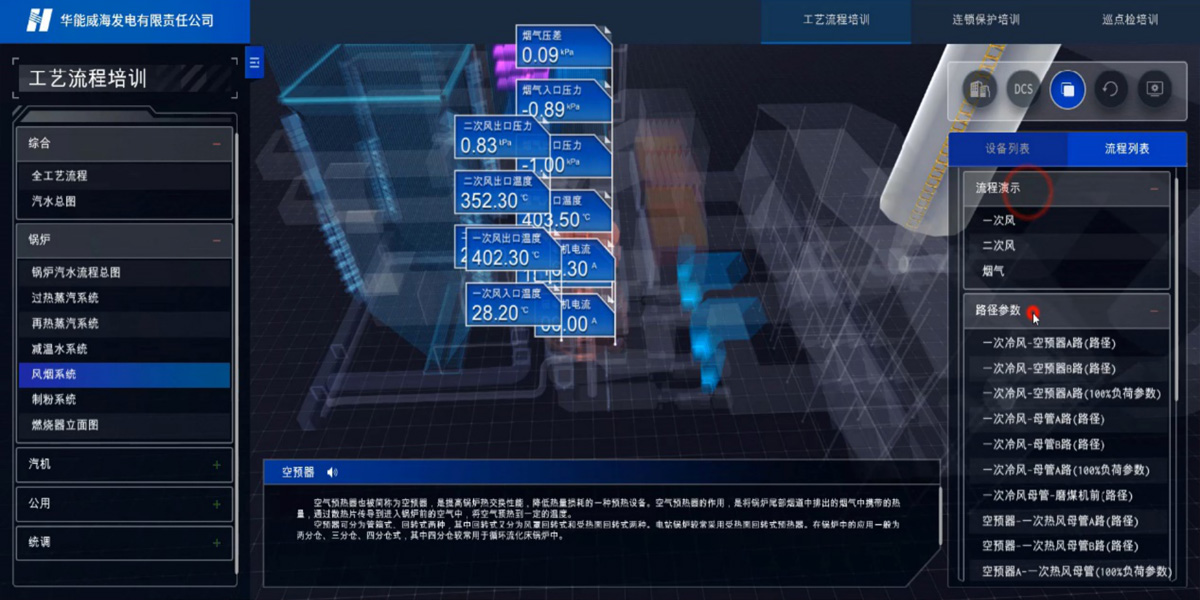

Through 3D visualization technology, the three-dimensional display of the entire factory's process flow, equipment structure and working principle is achieved, a realistic virtual interactive 3D space environment is established, and a 3D visualization and intuitive training method is set up to realize the simulation training of equipment maintenance. For the maintenance and disassembly of important equipment and systems, the entire process is simulated to accurately indicate the procedures, quality inspection points, and dangerous points, improving the quality and efficiency of maintenance and reducing quality accidents. Through human-computer interaction devices, virtual maintenance training is conducted to comprehensively enhance the maintenance skills of employees. The internal structure and operation process of the equipment are finely simulated to achieve full-process visual training on equipment principles, maintenance processes, and technological processes, effectively supporting maintenance planning and saving personnel training costs. Establish a knowledge base and evaluation rules for the maintenance of major equipment, and conduct virtual maintenance assessment.

Key technologies and expected effects Key technology and expected effect

Key technologies

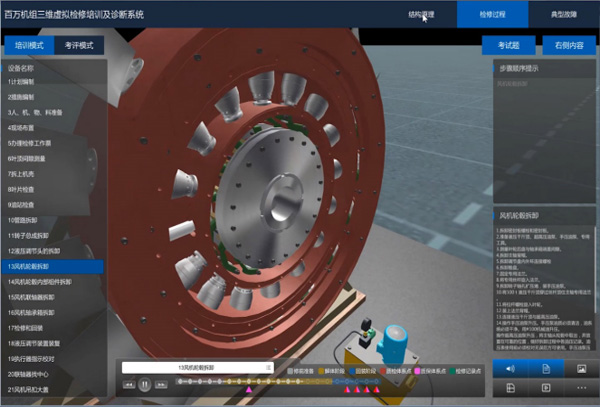

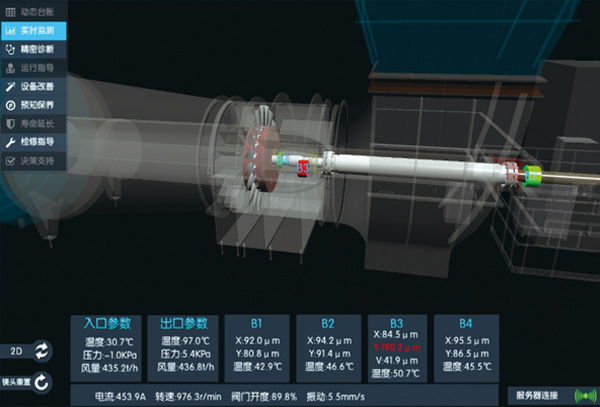

◆Digital drawings, modeling down to the equipment component level, dynamic simulation of operation processes and fault types; ◆3D modeling platform, full-process simulation guidance for 3D disassembly of equipment, automatic prompts for quality inspection points and dangerous points, and full-process process packages and file cards.

Expected effect

◆For the maintenance and disassembly of important equipment and systems, the entire process is simulated to accurately indicate the procedures, quality inspection points, and hazard points, thereby enhancing the quality and efficiency of maintenance 20% Reduce quality accidents 60% The above;◆The internal structure and operation process of the equipment are precisely simulated to achieve full-process visual training on equipment principles, maintenance processes, and technological processes, effectively supporting maintenance planning and saving personnel training costs more than 40%.
