AI Bi-directional Recognition Based 6kV Switch Logic Five-prevention Device

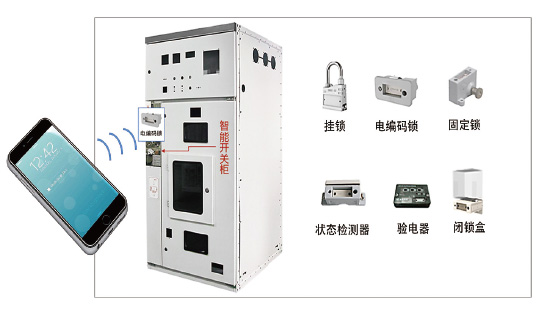

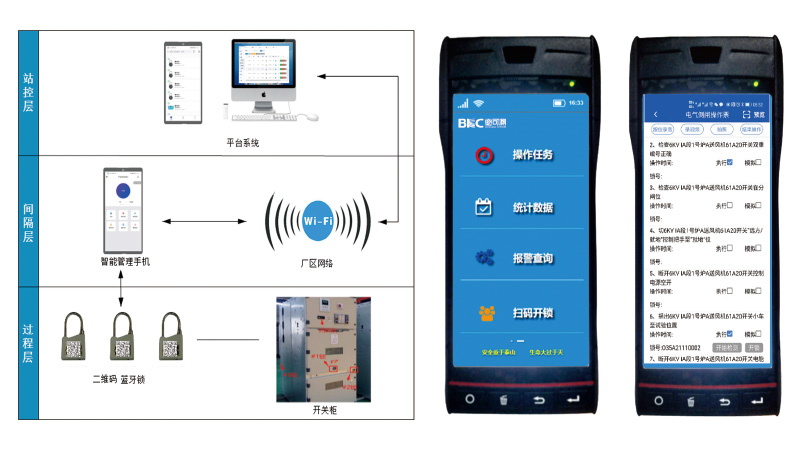

The switch cabinet is equipped with custom-developed electronic code locks (including switch operation holes, grounding knife switch holes and rear cabinet door operation holes). The electronic code locks adopt dual numbering, and the preset position information -KKS is encoded into the electronic code locks to identify the necessary conditions for unlocking. Integrate the gis map of 6kV switches with equipment information, preset the corresponding position information and KKS coding information, and construct a digital graphic system for factory-use switches. The system is equipped with typical electrical operation tickets, featuring built-in five-proof logic interlocks. Operators are authorized according to the operation ticket process to complete the invoicing process, and the operation information is sent to the mobile APP terminal for execution. The operator holds a mobile terminal and the position information of the switch cabinet to mutually identify each other, completing the necessary conditions for the operation of the switch cabinet. Meanwhile, the intelligent encoded lock, under the condition of meeting the five-prevention logic setting, completes the unlocking and has a voice prompt function, effectively preventing the risk of misoperation such as incorrect intervals and live grounding knife (grounding wire) closing.

Product Details

Technical Features

◆By leveraging advanced and mature intelligent technological means, typical safety hazards on site can be effectively controlled to achieve 6kV High-voltage switch AI Identify the five-prevention control application of logic, thereby effectively avoiding serious accidents such as personnel entering the wrong intervals and grounding wires with power on. It is equipped with an intelligent safety control platform, which can realize remote monitoring, remote logic, personnel positioning, operation step supervision and other information, achieving visualized safe electrical operation. ◆Support mobile applications VS The necessary and sufficient conditions for opening the switch cabinet VS The switch lock information corresponds one-to-one with the QR code information, facilitating on-site application. There are multiple options for the encoded lock, all of which can realize the graphic of the switch cabinet-Location-kks Information coding supports the graphic and digital information system of switch cabinets, allowing for arbitrary addition or reduction of functions to meet on-site usage conditions. The intelligent switch cabinet code lock fully considers emergency situations and has a mechanical key unlocking function to avoid the risk of being unable to operate due to power failure.

: Expected effect

◆Through Al Mutual recognition and confirmation between humans and machines should be avoided 6kV(10kV) Potential hazards of incorrect intervals during switch operation. ◆Through Al recognition and logic programming functions enable logical confirmation of opening the back cover, human-machine recognition, as well as voice alerts and behavior rejection for illegal operations, completely eliminating serious violation risks such as live grounding wires. ◆Through Al lntelligentization enhances safety management capabilities. Microcomputer anti-misoperation technology is adopted to achieve personnel behavior warning and intelligent switch cabinets Al The technical rejection technology for identifying and behavioral errors lays a solid foundation for the intrinsic safety of high-voltage distributior room operations.
