TRIO Mechanical vibration state analyzer, four-channel vibration data acquisition, analysis and intelligent diagnosis system

TRIO Mechanical Vibration Condition Analyzer

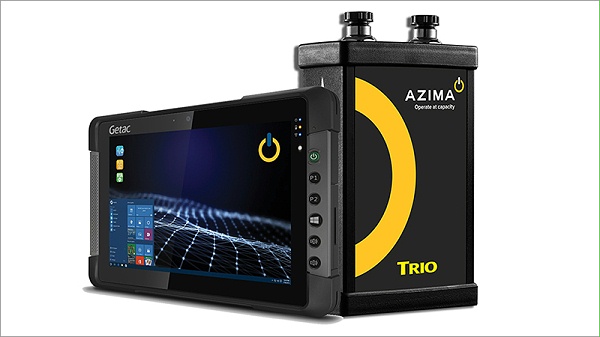

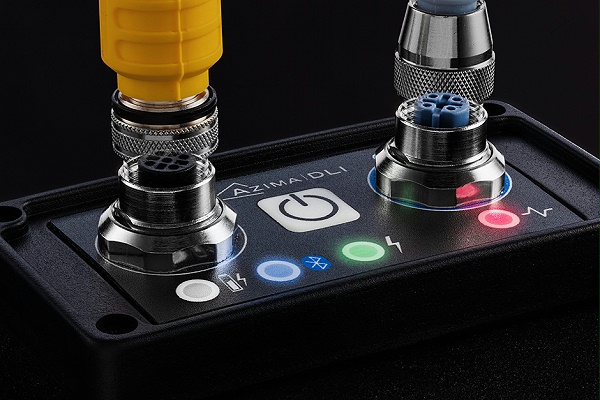

TRIO The series of mechanical vibration condition analyzers is a four-channel vibration data acquisition, analysis and intelligent diagnosis system. The standard model is Trio CX/A It is composed of a data processor and an controller. Depending on thesoftware embedded in the controller, it is divided into two models: (1) TRIO-CX8 - Built-in ExpertALERT™ Intelligent diagnosis system (2) TRIO-CA8 - Built-in ViewALERT™Vibration analysis system.

Product features
(1) Four channel synchronous data acquisition and real-time analysis;
(2) Three-axis acceleration sensor, saving data acquisition time;
(3) Windows10 Industrial tablet computer, with a fully Chinese interface;
(4) Wireless and modular data acquisition and transmission design;
(5) Four plane on-site dynamic balancing and advanced analysis options;
(6) A unique standard measurement point fixed installation for data guarantee quality;
(7) "Powerful" ExpertALERT TM The expert intelligent diagnosis system includes 6000+ The remaining fault diagnosis rules are still being continuously improved, and the accuracy rate of equipment fault diagnosis remains 90% above.

CX8a2

Technical parameters
(1) 4 Channel sampling is carried out simultaneously. AC, DC Measurement
(2) Screen: 8 Inch capacitive touch screen LED Backlight
(3) Storage: 4GB Memory 128G Hard disk SSD
(4) External communication method: Wi-Fi" Bluetooth USB Audio and video ports
(5) Battery: Built-in lithium battery, long battery life 10 More than hour
(6) Number of spectral lines: maximum 25,600
(7) Bandwidth: 0.5Hz ~ 40KHz
(8) Demodulation analysis: Digital amplitude demodulation, impact demodulation (for low-speed detection)
(9) It is equipped with an internal database of bearings and motors, allowing for the query of the main process parameters and fault characteristic frequencies of commonly used bearings and motors
(10) It is equipped with an intelligent expert diagnosis system to automatically diagnose equipment faults
(11) Supports remote diagnosis function and stable remote data transmission
(12) Allow third parties Windows Application loading
(13) Size: 277 x 151 x 24 (mm)
(14) Weight: 0.88 kg
(15) Protection grade: IP65, MIL-STD-810G Standard
