1.     Frequency range 20 ~ 100kHz The entire range has the same sensitivity, not just being particularly sensitive to the center frequency.

2.     5"TFT WVGA 800 x400 the color screen can display data and images more clearly.

3.     It features multi-touch screen control with a Chinese menu, making operation simple and convenient.

4.     Smart phone design, compact and light weight body 90 x 174 x 25mm .The main unit is only net weight 0.37kg.

5.     8GB Memory and 16GB Memory card (Suppor t32GB) It can store a large amount of data and pictures.

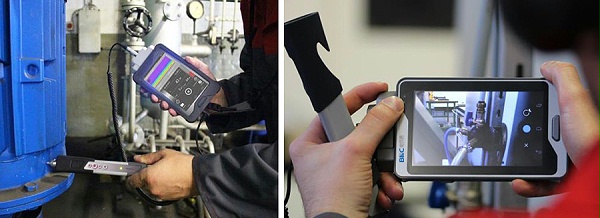

6.     Built-in 500 the universal camera can capture the fault point on site and synthesize the measured data into the report.

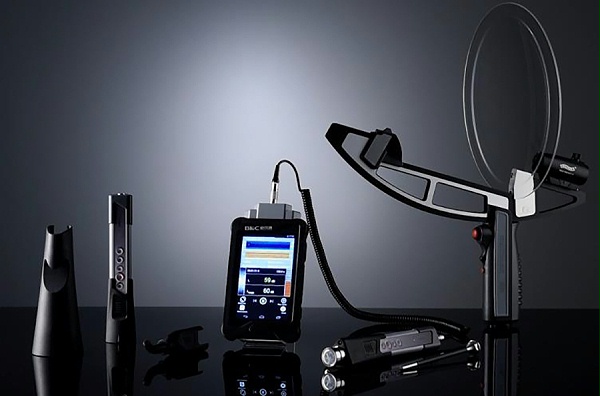

7.     According to the testing requirements, non-contact, contact and remote disc type sound collectors are selected. Each probe is equipped with a positioning laser.

8.     Annotations can be added to each measurement with text and an internal microphone.

9.     Built-in loudspeaker, allowing you to hear the collected ultrasonic waves even in a quiet environment without headphones.

10.  Built-in dedicated APP it can conduct multiple analyses of audio in real time on site and display time-domain graphs. FFT The spectrum graph can also generate reports in real time.

Technical parameters

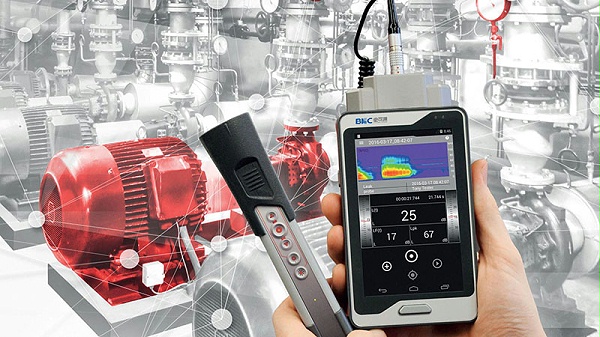

1.     Host display screen and control 800x480.The pixel has back light 5" TFT Color display screen, capable of simultaneously showing the time domain/Frequency-domain graph, various data:It includes the highest, lowest, real-time, average value, etc., and simultaneously displays time, battery status and probe parameters, etc.

2.     Internal circuit Built-in ARM Dual-core processor and embedded Android Operating system.

3.     Operation and Control It is controlled by multi-touch screen, with a Chinese menu and keyboard input annotations that come with the system.

4.     Data recording 8GB Memory and 16GB Memory card (The maximum can be in creased 32GB), Maximum recordable 2 Millions of data points 7 Ten thousand sheets in length 10 The time-domain graph of seconds 15010,000-second audio and 1Ten thousand photos.

5.     Input/Output device Built-in with light source 500 A ten-megapixel camera with an integrated microphone and amplifier. 3.5mm Headphone jack Lemo Probe interface and USB Computer interface.

6.     Headphones Built-in active noise-canceling over-ear headphones.

7.     Battery Rechargeable battery 3.7V 4050mAh The lithium battery can work in power-saving mode 8~12 Hours are optional 7350mAh High-capacity battery.

8.     Mainframe weight and dimensions Including the battery and the main unit 0.37kg, 90 x 174 x 25 mm ( W x H x D).

9.     The temperature measurement range of the external red probe-70°C - +380°C ± 0.5°C.

10.  Frequency range of each probe 20 ~ 100kHz. The entire range has the same sensitivity, not just being particularly sensitive to the center frequency.

11.  Non-contact probe Built-in laser positioning and LED The lamp comes with a volume control and a power button, and can be used in conjunction with three different Angle collectors.

12.  Contact probe Built-in laser positioning and LED The lamp comes with a volume control, a power button, and can be used in conjunction with two different Angle needle and magnetic probes. It is equipped with a built-in point thermometer  (-70to+380°C).

13.  Disc-shaped sound collection probe Built-in laser positioning and on-off key, with a red dot sight equipped with an optical lens, targeting the fault point of the distance.

14.  Allowable operating temperature -10～+40°C.

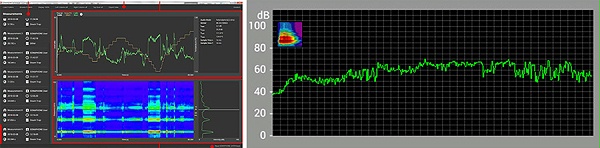

15.  Software The host is equipped with built-in collection and analysis software, which can measure, record and store quantities. Data can be digital, time-domain graphs and FFT It is displayed in the form of a spectrogram. Photos can be superimposed on the data, along with text and oral annotations. Data can be generated PDF The report can also be exported to a computer. PC end The software can view and process all the recorded data on the computer, including readings, audio, charts and photos, etc.
